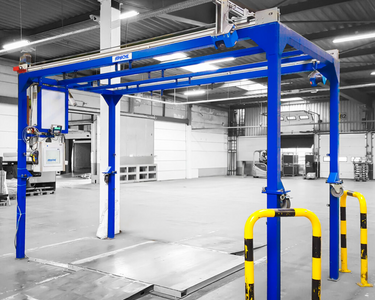

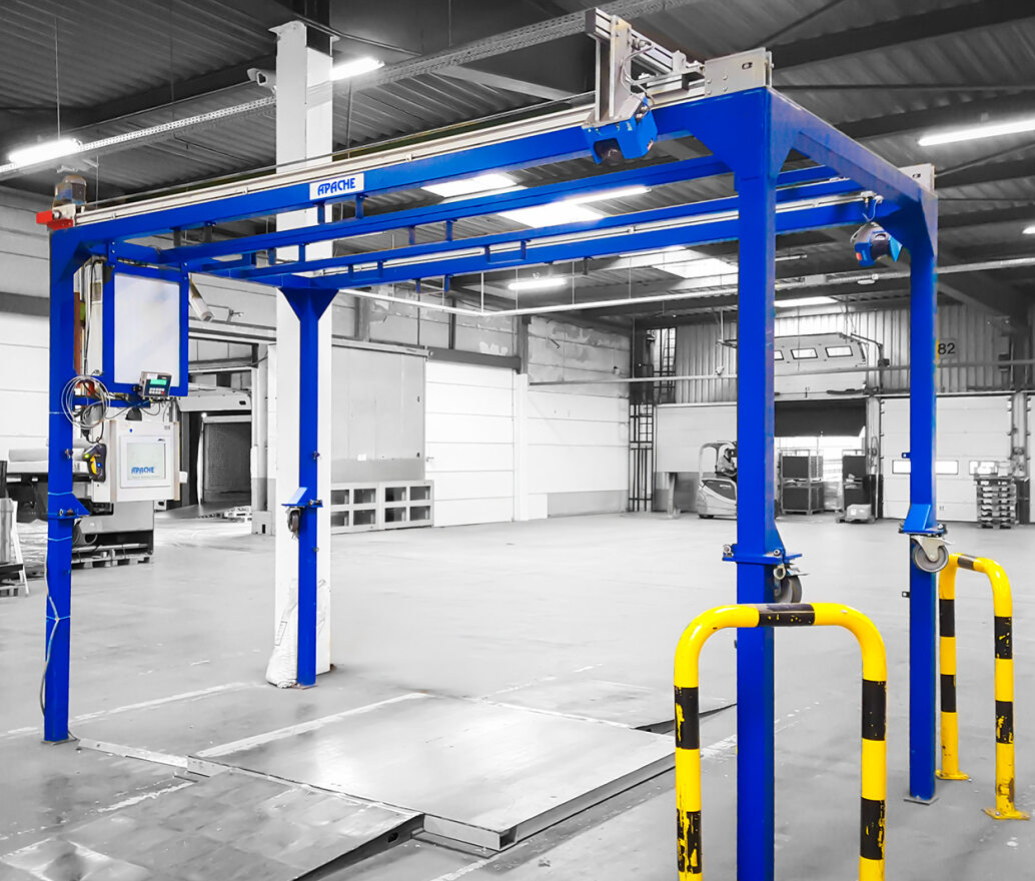

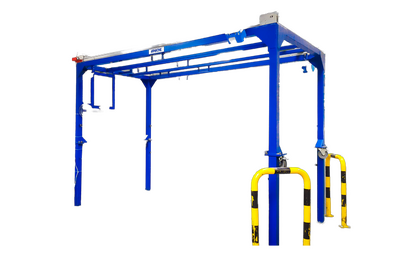

APACHE portal movable
Mobile precision for flexible logistics
Main features
- Mobile & ready for use regardless of location
Thanks to foldable roller supports, the entire system can be moved, loaded and set up again at a new location within a very short time - for maximum logistical flexibility.
- Automated volume and weight measurement
Two laser scanning heads on a motorized measuring beam precisely measure the length, width and height of the object. An integrated scale optionally enables simultaneous weight measurement.
- Photo capture for documentation and preservation of evidence
With the optional camera, each consignment is also documented photo-realistically - for digital traceability, quality management and master data recording.
- Ready for immediate use - plug-and-play principle
Simply set up, connect and get started: The measuring process is started manually or by barcode scan - for fast, intuitive operation in everyday life.
- Legally relevant data & fast amortization
All dimension data complies with the EU measurement directive and is therefore legally usable for billing purposes. The detection of incorrectly declared shipments saves costs and leads to a fast return on investment.
Technical specifications
Technical details
|
Max. measuring area On request |
250 cm x 250 cm x 260 cm 250 cm x 350 cm x 280 cm |
| Device dimensions | 360 (460) cm x 330 cm x 340 cm |
| Measuring surface | 250 cm x 250 cm x 260 cm; on request: 250 cm x 350 cm x 280 cm |
| Scale division | 2 cm / 2 cm / 1 cm |
| Minimum package size | 20 cm x 20 cm x 10 cm |
| Movement speed | approx. 0.4 m/sec. |
| Scale | 200 cm x 200 cm, max. 2,000 kg (other dimensions and weighing ranges are available on request) |
Data sheet
Further information can be found in the data sheet.
See product in action
For a complete overview of the capabilities of the APACHE portal movable, please watch this and the following demo video.
